- Cutting - | ||||||||||||||||||||||||||
►14" Blue Ripper Rail Saw Blade NEW | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
BRB1412 | 14" | 10.5mm | 3.2mm | Premium | 3,450 | 28 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Quartzite | |||||||||||||||||||||||||
Machines: | Bridge saw | |||||||||||||||||||||||||
Features: | Excellent for pre-cutting for any materials. Sandwich steel core for quite silent cutting. | |||||||||||||||||||||||||
Arbor: | 50/60mm | |||||||||||||||||||||||||
►Sandwich Silent Core Blade | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
SALE! | PMT1615 | 16" | 15mm | 3.2mm | Premium | 1,200-1,400 | 5 | |||||||||||||||||||
PMT1625 | 16" | 25mm | 3.2mm | Premium | 1,200-1,400 | 29 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Quartzite | |||||||||||||||||||||||||
Machines: | Bridge saw | |||||||||||||||||||||||||
Features: | Excellent for pre-cutting for any materials. Sandwich steel core for quite silent cutting. | |||||||||||||||||||||||||
Arbor: | 50/60mm | |||||||||||||||||||||||||
►Marble Silent Core Blade Upgraded | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
PMT1410 | 14" | 10mm | 3.2mm | Premium | 2,000 | 39 | ||||||||||||||||||||
PMT1610 | 16" | 10mm | 3.2mm | Premium | 2,000 | 35 | ||||||||||||||||||||
PMT1810 | 18" | 10mm | 3.2mm | Premium | 2,000 | 25 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Marble | |||||||||||||||||||||||||
Machines: | Bridge saw | |||||||||||||||||||||||||
Features: | Higher concentration and smaller diamonds to optimize cutting marble. | |||||||||||||||||||||||||
Sandwich steel core for quite silent cutting. | ||||||||||||||||||||||||||
Arbor: | 50/60mm | |||||||||||||||||||||||||
► PROPAT Patterened Diamond Blade (Super Premium) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
PRP1425s | 14" | 25mm | 3.2mm | 7 Layers | 1,400-1,600 | 106 | ||||||||||||||||||||
PRP1625s | 16" | 25mm | 3.2mm | 7 Layers | 1,200-1,400 | 145 | ||||||||||||||||||||
PRP1825s | 18" | 25mm | 3.4mm | 7 Layers | 1,000-1,200 | 50 | ||||||||||||||||||||
PRP1425sl | 14" | 25mm | 3.2mm | 7 Layers | Longer Life | 101 | ||||||||||||||||||||
PRP1625sl | 16" | 25mm | 3.4mm | 7 Layers | Longer Life | 111 | ||||||||||||||||||||
PRP1825sl | 18" | 25mm | 3.4mm | 7 Layers | Longer Life | 86 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Quartzite | |||||||||||||||||||||||||
Machines: | Bridge saw | |||||||||||||||||||||||||
Features: | Super premium quality. 7 layers of Patterened diamond grits for balanced and faster cutting. | |||||||||||||||||||||||||
Arbor: | 50/60mm | |||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity | |||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
PRPR1425 | 14" | 25mm | 3.2mm | 7 Layers | 1,400-1,600 | 18 | ||||||||||||||||||||
PRPR1625 | 16" | 25mm | 3.2mm | 7 Layers | 1,200-1,400 | 0 | ||||||||||||||||||||
PRPR1825 | 18" | 25mm | 3.4mm | 7 Layers | 1,000-1,200 | 6 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Quartzite | |||||||||||||||||||||||||
Machines: | Bridge saw | |||||||||||||||||||||||||
Features: | Super premium quality. 7 layers of Patterened diamond grits for balanced and faster cutting. | |||||||||||||||||||||||||
Arbor: | 50/60mm | |||||||||||||||||||||||||
► PROPAT Patterened Diamond Blade (Super Premium) New Design! | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
PRP1425p | 14" | 25mm | 3.2mm | 7 Layers | 1,400-1,600 | 81 | ||||||||||||||||||||
PRP1625p | 16" | 25mm | 3.2mm | 7 Layers | 1,200-1,400 | 137 | ||||||||||||||||||||
PRP1825p | 18" | 25mm | 3.2mm | 7 Layers | 1,000-1,200 | 56 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Quartzite | |||||||||||||||||||||||||
Machines: | Bridge saw | |||||||||||||||||||||||||
Features: | Super premium quality. 7 layers of Patterened diamond grits for balanced and faster cutting. | |||||||||||||||||||||||||
Constant speed of cutting. New Design of segments that enables cooling and debris removal. | ||||||||||||||||||||||||||
Arbor: | 50/60mm | |||||||||||||||||||||||||
► Pattrened Diamond Blade for Quartzite | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
PRPQ1425 | 14" | 25mm | 3.2mm | 7 Layers | 1,400-1,600 | 98 | ||||||||||||||||||||
PRPQ1625 | 16" | 25mm | 3.2mm | 7 Layers | 1,200-1,400 | 220 | ||||||||||||||||||||
PRPQ1825 | 18" | 25mm | 3.2mm | 7 Layers | 1,000-1,200 | 66 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Best works for quartzite. Granite, Engineered Stone. | |||||||||||||||||||||||||
Machines: | Bridge saw | |||||||||||||||||||||||||
Features: | Super premium quality. Patterened diamond grits for balanced and faster cutting. Constant speed of cutting. | |||||||||||||||||||||||||
V-slot on diamond segments for cutting faster and harder natural stones | ||||||||||||||||||||||||||
Arbor: | 50/60mm | |||||||||||||||||||||||||
► Dekton and Porcelain Blade | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DEK1410 | 14" | 10mm | 3.2mm | Premium | 4,500 | 30 | ||||||||||||||||||||
DEK1610 | 16" | 10mm | 3.2mm | Premium | 3,800 | 16 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Best works for quartzite. Granite, Engineered Stone. | |||||||||||||||||||||||||
Machines: | Bridge saw | |||||||||||||||||||||||||
Features: | Super premium quality. Patterened diamond grits for balanced and faster cutting. Constant speed of cutting. | |||||||||||||||||||||||||
V-slot on diamond segments for cutting faster and harder natural stones | ||||||||||||||||||||||||||
Arbor: | 50/60mm | |||||||||||||||||||||||||
► Atlas Blade | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
ATL4 | 4" | 8mm | 2.4mm | Regular | 15,000 | 364 | ||||||||||||||||||||
ATL4.5 | 4.5" | 8mm | 2.4mm | Regular | 13,000 | 309 | ||||||||||||||||||||
ATL5 | 5" | 8mm | 2.4mm | Regular | 12,000 | 423 | ||||||||||||||||||||
ATL6 | 6" | 8mm | 2.4mm | Regular | 10,185 | 330 | ||||||||||||||||||||
ATL7 | 7" | 8mm | 2.4mm | Regular | 8,730 | 43 | ||||||||||||||||||||
ATL8 | 8" | 8mm | 2.4mm | Regular | 7,640 | 56 | ||||||||||||||||||||
ATL5S | 5" | 8mm | 2.4mm | High Speed | 12,000 | 295 | ||||||||||||||||||||
ATL6S | 6" | 8mm | 2.4mm | High Speed | 10,185 | 505 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Quartzite | |||||||||||||||||||||||||
Machines: | Angle grinder, Circular saw | |||||||||||||||||||||||||
Features: | High Speed version has a special diamond bond for faster cutting | |||||||||||||||||||||||||
Arbor: | 5/8"-7/8" (4.5", 5", 6"), 5/8"-DKO (7", 8") | |||||||||||||||||||||||||
► Labon Blade | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
LBN6-D | 6" | 9mm | 2.4mm | Premium/Long Life | 10,185 | 535 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Quartzite | |||||||||||||||||||||||||
Machines: | Angle grinder, Circular saw | |||||||||||||||||||||||||
Features: | Premium Cutting Performance and Longer life span | |||||||||||||||||||||||||
Arbor: | 5/8"-7/8" | |||||||||||||||||||||||||
► Multi Blade (Grinding and Cutting) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
GLX4 | 4" | - | 4.0mm | W/ Flange | 15,000 | 123 | ||||||||||||||||||||
GLX5 | 5" | - | 4.0mm | W/ Flange | 12,000 | 280 | ||||||||||||||||||||
GLX6 | 6" | - | 4.0mm | W/ Flange | 10,185 | 85 | ||||||||||||||||||||
GLX5N | 5" | - | 4.0mm | W/O Flange | 12,000 | 265 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Quartzite, Porcelain/Tile, Marble (Grinding) | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Able to handle both cutting and grinding | |||||||||||||||||||||||||
Arbor: | 5/8"-7/8" | |||||||||||||||||||||||||
► Butterfly Blade | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
BTF4 | 4" | 7.5mm | 2.4mm | - | 15,000 | 135 | ||||||||||||||||||||
BTF4.5 | 4.5" | 7.5mm | 2.4mm | - | 13,000 | 130 | ||||||||||||||||||||
BTF5 | 5" | 7.5mm | 2.4mm | - | 12,000 | 234 | ||||||||||||||||||||
BTF6 | 6" | 7.5mm | 2.4mm | - | 10,185 | 261 | ||||||||||||||||||||
BTF7 | 7" | 7.5mm | 2.4mm | - | 8,730 | 90 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Quartzite | |||||||||||||||||||||||||
Machines: | Angle grinder, Circular saw | |||||||||||||||||||||||||
Features: | Underprotection for deep cutting and reduces damages on the core. More smooth cutting surface | |||||||||||||||||||||||||
Arbor: | 5/8"-7/8" | |||||||||||||||||||||||||
► Vulcania Blade | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
VLO5 | 5" | 10.5mm | 2.4mm | - | 12,200 | 138 | ||||||||||||||||||||
VLO6 | 6" | 10.5mm | 2.4mm | - | 10,185 | 152 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone | |||||||||||||||||||||||||
Machines: | Angle grinder, Circular saw | |||||||||||||||||||||||||
Features: | Taller segmentsfor longer life time | |||||||||||||||||||||||||
Arbor: | 5/8"-7/8" | |||||||||||||||||||||||||
► Mesh Porcelain Tile Blade (Super Premium) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
MPT4s | 4" | 10mm | 1.4mm | Reinforced Core | 13,200 | 478 | ||||||||||||||||||||
MPT4.5s | 4.5" | 10mm | 1.4mm | Reinforced Core | 13,200 | 218 | ||||||||||||||||||||
MPT5s | 5" | 10mm | 1.4mm | Reinforced Core | 12,200 | 302 | ||||||||||||||||||||
MPT6s | 6" | 10mm | 1.4mm | Reinforced Core | 10,000 | 266 | ||||||||||||||||||||
MPT7s | 7" | 10mm | 1.4mm | Reinforced Core | 8,600 | 46 | ||||||||||||||||||||
MPT10s | 10" | 10mm | 1.4mm | Reinforced Core | 8,600 | 50 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Marble, Deckton, Porcelain/Tile (less than 10mm) | |||||||||||||||||||||||||
Machines: | Angle grinder, Circular saw | |||||||||||||||||||||||||
Features: | Reinforced core for stable cutting and prevents wobbling. Optimized segment design for faster cutting | |||||||||||||||||||||||||
Arbor: | 5/8"-7/8" | |||||||||||||||||||||||||
► Shield Contour Blade (Turbo) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
SLD5 | 5" | 7.5mm | 3.2mm | - | 12,200 | 108 | ||||||||||||||||||||
SLD5.5 | 5.5" | 7.5mm | 3.2mm | - | 12,200 | 78 | ||||||||||||||||||||
SALE! | SLD5V | 5" | 7.5mm | 3.2mm | Vacuum Brazed | 12,200 | 62 | |||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Quartzite | |||||||||||||||||||||||||
Machines: | Angle grinder, Circular saw | |||||||||||||||||||||||||
Features: | Round cutting (not for straight cutting), long side protection for longer life time. | |||||||||||||||||||||||||
Vacuum brazed version is suitable for faster cutting and optimal for marble material. | ||||||||||||||||||||||||||
Arbor: | 5/8"-7/8" |
|
|
|||||||||||||||||||||||
► Shield Blade (Turbo-Flat) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
SALE! | SLD5F | 5" | 7.5mm | 3.2mm | Flat | 12,200 | 45 | |||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Quartzite | |||||||||||||||||||||||||
Machines: | Angle grinder, Circular saw | |||||||||||||||||||||||||
Features: | Suitable for deep straight cutting thick materials. | |||||||||||||||||||||||||
Arbor: | 5/8"-7/8" | |||||||||||||||||||||||||
|
||||||||||||||||||||||||||
►Vacuum Brazed Blade for Marble | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
MV5k | 5" | 4mm | 1.5mm | Key slot | 12,000 | 207 | ||||||||||||||||||||
MV6k | 6" | 4mm | 1.5mm | Key slot | 10,185 | 118 | ||||||||||||||||||||
MV5kp | 5" | 3mm | 2.2mm | Key slot/ Side protection |
12,000 | 184 | ||||||||||||||||||||
MV6kp | 6" | 3mm | 2.2mm | Key slot/ Side protection |
10,185 | 105 | ||||||||||||||||||||
MV7kp | 7" | 3mm | 2.2mm | Key slot/ Side protection |
8,730 | 117 | ||||||||||||||||||||
SALE! | MV5v | 5" | 3.5mm | 1mm | V slot | 12,000 | 82 | |||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Marble, Porcelain/Tile, Granite | |||||||||||||||||||||||||
Machines: | Angle grinder, Circular saw | |||||||||||||||||||||||||
Features: | V-slot for Faster cutting for harder stone. Side protection provides faster and deeper cutting. | |||||||||||||||||||||||||
Arbor: | 5/8"-7/8" | |||||||||||||||||||||||||
► Electroplated Blade for Marble | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
ME5k | 5" | 4mm | 1.5mm | Key slot | 12,000 | 210 | ||||||||||||||||||||
ME6k | 6" | 4mm | 1.5mm | Key slot | 10,185 | 232 | ||||||||||||||||||||
ME5kp | 5" | 4mm | 1.5mm | Key slot/ Side Protection |
12,000 | 91 | ||||||||||||||||||||
ME6kp | 6" | 4mm | 1.5mm | Key slot/ Side Protection |
10,185 | 193 | ||||||||||||||||||||
SALE! | ME5v | 5" | 3.5mm | 1mm | V slot | 12,000 | 39 | |||||||||||||||||||
SALE! | ME6v | 6" | 3.5mm | 1.5mm | V slot | 10,185 | 29 | |||||||||||||||||||
SALE! | EVP4s | 4" | 18mm | 1mm | V slot/Dotted pad | 15,000 | 48 | |||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Marble, Porcelain/Tile, Deckton | |||||||||||||||||||||||||
Machines: | Angle grinder, Circular saw | |||||||||||||||||||||||||
Features: | Electroplated offers clean and precise cutting but less life time than vacuum brazed. | |||||||||||||||||||||||||
Arbor: | 5/8"-7/8" | |||||||||||||||||||||||||
|
||||||||||||||||||||||||||
► Electroplated Convex Blade | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
SALE! | EC5s | 5" | - | 2.8mm | Dotted | 12,000 | 8 | |||||||||||||||||||
SALE! | EC7s | 7" | - | 1.5mm | Dotted | 8,730 | 5 | |||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Marble, Porcelain/Tile, Deckton | |||||||||||||||||||||||||
Machines: | Angle grinder, Circular saw | |||||||||||||||||||||||||
Features: | Electroplated contour blade for round cutting. | |||||||||||||||||||||||||
Arbor: | 5/8"-7/8" | |||||||||||||||||||||||||
► Tuck point Blade | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Option | RPM | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
PLT31 | 3" | 7mm | 6.6mm | - | 15,000 | 114 | ||||||||||||||||||||
PLT41 | 4" | 7mm | 6.6mm | - | 13,700 | 107 | ||||||||||||||||||||
PLT51 | 5" | 7mm | 6.6mm | - | 12,000 | 77 | ||||||||||||||||||||
PLT4T | 4" | 7mm | 4.5mm | Turbo | 13,700 | 123 | ||||||||||||||||||||
PLT5T | 5" | 7mm | 4.5mm | Turbo | 12,000 | 53 | ||||||||||||||||||||
PLT7T | 7" | 7mm | 4.5mm | Turbo | 8,730 | 15 | ||||||||||||||||||||
Use: | Wet and Dry |
|
||||||||||||||||||||||||
Application: | Granite, Engineered stone, Quartzite | |||||||||||||||||||||||||
Machines: | Angle grinder, Circular saw | |||||||||||||||||||||||||
Features: | Used for grooving and cutting channels for reinforcement rods. | |||||||||||||||||||||||||
Turbo version performs clean fast work with no chipping. | ||||||||||||||||||||||||||
Arbor: | 5/8"-7/8" | |||||||||||||||||||||||||
- Grinding - | ||||||||||||||||||||||||||
► Drum Wheel with Straight Segment | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DWR1C | 25mm | 15 | 41mm | Coarse | W/ Resin | 97 | ||||||||||||||||||||
DWR1M | 25mm | 15 | 41mm | Medium | W/ Resin | 86 | ||||||||||||||||||||
DWR2C | 50mm | 15 | 41mm | Coarse | W/ Resin | 36 | ||||||||||||||||||||
DWR2M | 50mm | 15 | 41mm | Medium | W/ Resin | 90 | ||||||||||||||||||||
DWR3C | 70mm | 21 | 41mm | Coarse | W/ Resin | 74 | ||||||||||||||||||||
DWR3M | 70mm | 21 | 41mm | Medium | W/ Resin | 79 | ||||||||||||||||||||
DWR4C | 100mm | 21 | 41mm | Coarse | W/ Resin | 5 | ||||||||||||||||||||
DWR4M | 100mm | 21 | 41mm | Medium | W/ Resin | 11 | ||||||||||||||||||||
DWS1C | 25mm | 15 | 41mm | Coarse | W/O Resin | 263 | ||||||||||||||||||||
DWS1M | 25mm | 15 | 41mm | Medium | W/O Resin | 109 | ||||||||||||||||||||
DWS2C | 50mm | 15 | 41mm | Coarse | W/O Resin | 139 | ||||||||||||||||||||
DWS2M | 50mm | 15 | 41mm | Medium | W/O Resin | 85 | ||||||||||||||||||||
DWS3C | 70mm | 21 | 41mm | Coarse | W/O Resin | 39 | ||||||||||||||||||||
DWS3M | 70mm | 21 | 41mm | Medium | W/O Resin | 65 | ||||||||||||||||||||
DWS4C | 100mm | 21 | 41mm | Coarse | W/O Resin | 18 | ||||||||||||||||||||
DWS4M | 100mm | 21 | 41mm | Medium | W/O Resin | 6 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Quartzite | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Used for truing vanity sink cut-outs and 90 degree side grinding (round or straight). | |||||||||||||||||||||||||
Resin filled will stable the grinding and segmented is for aggressive stock removal. | ||||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 8,000 | |||||||||||||||||||||||||
► Drum Wheel with Round Segment | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DWRR2C | 50mm | 15 | 41mm | Coarse | W/ Resin | 51 | ||||||||||||||||||||
DWRR2M | 50mm | 15 | 41mm | Medium | W/ Resin | 54 | ||||||||||||||||||||
DWRR3C | 70mm | 21 | 41mm | Coarse | W/ Resin | 31 | ||||||||||||||||||||
DWRR3M | 70mm | 21 | 41mm | Medium | W/ Resin | 36 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Quartzite | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Round desgin of diamond tips. More consisitent grinding. | |||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 8,000 | |||||||||||||||||||||||||
► Rim Drum Wheel with Water Hole | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DWCW2C | 50mm | 41mm | Coarse | Water Holes | 33 | |||||||||||||||||||||
DWCW2M | 50mm | 41mm | Medium | Water Holes | 20 | |||||||||||||||||||||
DWCW2F | 50mm | 41mm | Fine | Water Holes | 24 | |||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Quartzite | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | More life time than normal drum wheels, no chipping, smooth grinding surface. | |||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 4,000 | |||||||||||||||||||||||||
► Rim Drum Wheel with Vacuum Brazed | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DWCV1C | 1" | 41mm | Coarse | V.B | 33 | |||||||||||||||||||||
DWCV1M | 1" | 41mm | Medium | V.B | 0 | |||||||||||||||||||||
DWCV2C | 2" | 41mm | Coarse | V.B | 17 | |||||||||||||||||||||
DWCV2M | 2" | 41mm | Medium | V.B | 60 | |||||||||||||||||||||
DWCV3C | 3" | 41mm | Coarse | V.B | 15 | |||||||||||||||||||||
DWCV3M | 3" | 41mm | Medium | V.B | 48 | |||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Marble, Deckton, Porcelain/Tile | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Vacuum brazed performs faster grinding than the metal drum wheels. | |||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 4,000 | |||||||||||||||||||||||||
► Rim Drum Wheel with Bearing | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DRB2C | 2" | 50mm | Coarse | W/ Bearing | 21 | |||||||||||||||||||||
DRB2M | 2" | 50mm | Medium | W/ Bearing | 9 | |||||||||||||||||||||
DRB2F | 2" | 50mm | Fine | W/ Bearing | 12 | |||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Quartzite | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | With top bearing, it gives convinence to beginner fabricators. Faster grinding and wears evenly. | |||||||||||||||||||||||||
Thread: | M14 | |||||||||||||||||||||||||
Max RPM: | 4,000 | |||||||||||||||||||||||||
► Sunflower Cup Wheel | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
SNF4rC | 4" | 20mm | 5mm | Pos.1 | W/ Resin | 55 | ||||||||||||||||||||
SNF4rM | 4" | 20mm | 5mm | Pos.2 | W/ Resin | 8 | ||||||||||||||||||||
SNF4rF | 4" | 20mm | 5mm | Pos.3 | W/ Resin | 6 | ||||||||||||||||||||
SNF4C | 4" | 20mm | 5mm | Pos.1 | W/O Resin | 40 | ||||||||||||||||||||
SNF4M | 4" | 20mm | 5mm | Pos.2 | W/O Resin | 50 | ||||||||||||||||||||
SNF4F | 4" | 20mm | 5mm | Pos.3 | W/O Resin | 35 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Concrete | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Resin filled for less chipping and balanced grinding. Segmented for more aggressive. | |||||||||||||||||||||||||
8 holes for dust extraction and aluminum body for lighter weight. | ||||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 8,000 (4")), 7,500 (5") | |||||||||||||||||||||||||
► Azalea Cup Wheel | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
AZL4sC | 4" | 25mm | 8mm | Pos.1 | W/ Snail Lock | 9 | ||||||||||||||||||||
AZL4sM | 4" | 25mm | 8mm | Pos.2 | W/ Snail Lock | 11 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered stone | |||||||||||||||||||||||||
Machines: | CNC machine | |||||||||||||||||||||||||
Features: | CNC edge cutting, snail locks for secure locking on the machine. | |||||||||||||||||||||||||
Carbon is added on diamonds for faster grinding. Aluminum body for light weight. | ||||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
► Double Row Cup Wheel (Accordion) | ||||||||||||||||||||||||||
DS# | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DRC4C | 4" | 20mm | 5mm | Pos.1 | - | 49 | ||||||||||||||||||||
DRC4M | 4" | 20mm | 5mm | Pos.2 | - | 65 | ||||||||||||||||||||
DRC4F | 4" | 20mm | 5mm | Pos.3 | - | 25 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Double row segments for professional performance. | |||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 13,700 | |||||||||||||||||||||||||
► Curved Cup Wheel (Rosemoss) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
RSM4C | 4" | 20mm | 5mm | Pos.1 | - | 48 | ||||||||||||||||||||
RSM4M | 4" | 20mm | 5mm | Pos.2 | - | 65 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Concrete | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Curved surface ground grinding. | |||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 13,700 | |||||||||||||||||||||||||
► Pineapple Cup Wheel (Diamond-Shape) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
NAP4rC | 4" | 7mm | 5mm | Pos.1 | - | 16 | ||||||||||||||||||||
NAP4rM | 4" | 7mm | 5mm | Pos.2 | - | 101 | ||||||||||||||||||||
NAP4rF | 4" | 7mm | 5mm | Pos.3 | - | 91 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Concrete | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Unique style of 16 metal segments.Smooth and wide grinding. | |||||||||||||||||||||||||
Steel body is made out of lightweight materials. Longer life time. | ||||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 8,000 | |||||||||||||||||||||||||
► Pineapple Cup Wheel (S-Shape) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
SAP4rC | 4" | 7mm | 5mm | Pos.1 | W/ Resin | 275 | ||||||||||||||||||||
SAP4rM | 4" | 7mm | 5mm | Pos.2 | W/ Resin | 371 | ||||||||||||||||||||
SAP4rF | 4" | 7mm | 5mm | Pos.3 | W/ Resin | 159 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Concrete | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Unique style of 16 metal segments.Smooth and wide grinding. | |||||||||||||||||||||||||
Steel body is made out of lightweight materials. Longer life time. | ||||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 8,000 | |||||||||||||||||||||||||
► Pineapple Cup Wheel (6x6 Shape) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
AP4rc | 4" | 7mm | 5mm | Pos.1 | W/ Resin | 45 | ||||||||||||||||||||
AP4rm | 4" | 7mm | 5mm | Pos.2 | W/ Resin | 110 | ||||||||||||||||||||
AP4rf | 4" | 7mm | 5mm | Pos.3 | W/ Resin | 126 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Concrete | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Unique style of 16 metal segments.Smooth and wide grinding. | |||||||||||||||||||||||||
Steel body is made out of lightweight materials. Longer life time. | ||||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 8,000 | |||||||||||||||||||||||||
► Pine Con-Cup Cup Wheel | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
PCC4c-d | 4" | 7mm | 5mm | Pos.1 | Diasaw Logo | 49 | ||||||||||||||||||||
PCC4m-d | 4" | 7mm | 5mm | Pos.2 | Diasaw Logo | 84 | ||||||||||||||||||||
PCC4f-d | 4" | 7mm | 5mm | Pos.3 | Diasaw Logo | 28 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Concrete | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Unique style of dense diamond segments for aggressive grinding performance | |||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 8,000 | |||||||||||||||||||||||||
► Cosmos Cup Wheel | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
SALE! | CSM4M | 4" | 20mm | 5mm | Pos.2 | W/O Resin | 24 | |||||||||||||||||||
SALE! | CSM7C | 7" | 20mm | 5mm | Pos.1 | W/O Resin | 1 | |||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Concrete | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Excellent value and aggressive. Aluminum body for lightweight. | |||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 13,700 (4"), 12,200 (5"), 8,500 (7") | |||||||||||||||||||||||||
► Mini-Lilac Cup Wheel | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
MLC2C | 2" | 15mm | 5mm | Pos.1 | Aluminum Body | 26 | ||||||||||||||||||||
MLC2M | 2" | 15mm | 5mm | Pos.2 | Aluminum Body | 91 | ||||||||||||||||||||
MLC2F | 2" | 15mm | 5mm | Pos.3 | Aluminum Body | 91 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone | |||||||||||||||||||||||||
Machines: | Angle grinder | |||||||||||||||||||||||||
Features: | Best for small area such as corners grinding. Aluminum body for lightweight. | |||||||||||||||||||||||||
Thread: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 13,700 | |||||||||||||||||||||||||
► Milling Wheel | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
MLW1440h | 14" | 8 X 8 X 40mm Length | Premium | Steel Core | 25 | |||||||||||||||||||||
MLW1440 | 14" | 8 X 8 X 40mm Length | Premium | Nylon Core | 13 | |||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Concrete | |||||||||||||||||||||||||
Machines: | CNC bridge saw machine | |||||||||||||||||||||||||
Features: | Best for grinding concrete used on the CNC table. Peeling the rough surface and gauging slabs on stationay | |||||||||||||||||||||||||
Easy to work with lightweight nylon body. | ||||||||||||||||||||||||||
Arbor: | 50/60mm | |||||||||||||||||||||||||

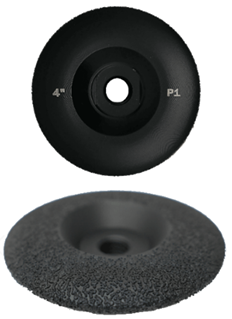

► Vacuum Brazed Cup Wheels (Novio) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
NV4-1 | 4" | - | - | #30/40 | P1 | 100 | ||||||||||||||||||||
NV4-2 | 4" | - | - | #50/60 | P2 | 86 | ||||||||||||||||||||
NV4-3 | 4" | - | - | #80/100 | P3 | 41 | ||||||||||||||||||||
NV4.5-1 | 4.5" | - | - | #30/40 | P1 | 123 | ||||||||||||||||||||
NV4.5-2 | 4.5" | - | - | #50/60 | P2 | 92 | ||||||||||||||||||||
NV4.5-3 | 4.5" | - | - | #80/100 | P3 | 75 | ||||||||||||||||||||
NV5-1 | 5" | - | - | #30/40 | P1 | 87 | ||||||||||||||||||||
NV5-2 | 5" | - | - | #50/60 | P2 | 64 |
|
|||||||||||||||||||
NV5-3 | 5" | - | - | #50/60 | P3 | 61 | ||||||||||||||||||||
Use: | Wet and Dry (better performance) | |||||||||||||||||||||||||
Application: | Granite, Engineered stone | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Faster grinding speed. Lightweight body. Wears evenly. Used for flat surface. | |||||||||||||||||||||||||
Arbor: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 9,000 (4"), 8,000 (5") | |||||||||||||||||||||||||
► Vacuum Brazed Cup Wheels (Novan) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
NVN4-1 | 4" | 25mm | - | #30/40 | P1 | 31 | ||||||||||||||||||||
NVN4-2 | 4" | 25mm | - | #50/60 | P2 | 133 | ||||||||||||||||||||
NVN4.5-1 | 4.5" | 25mm | - | #30/40 | P1 | 29 | ||||||||||||||||||||
NVN4.5-2 | 4.5" | 25mm | - | #50/60 | P2 | 43 | ||||||||||||||||||||
NVN5-1 | 5" | 25mm | - | #30/40 | P1 | 78 | ||||||||||||||||||||
NVN5-2 | 5" | 25mm | - | #50/60 | P2 | 85 | ||||||||||||||||||||
Use: | Wet and Dry (better performance) | |||||||||||||||||||||||||
Application: | Granite, Engineered stone | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Faster grinding speed. Lightweight body. Wears evenly. Used for curved surface. | |||||||||||||||||||||||||
Arbor: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 9,000 (4"), 8,000 (5") | |||||||||||||||||||||||||
- Drilling - | ||||||||||||||||||||||||||
► Non Core Bit | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DBX5 | 5mm(1/5") | 10mm | - | Premium | - | 6 | ||||||||||||||||||||
DBX6 | 6mm(1/4") | 10mm | - | Premium | - | 109 | ||||||||||||||||||||
DBX8 | 8mm(5/16") | 10mm | - | Premium | - | 143 | ||||||||||||||||||||
DBX10 | 10mm(3/8") | 10mm | - | Premium | - | 101 | ||||||||||||||||||||
DBX12 | 12mm(1/2") | 10mm | - | Premium | - | 105 | ||||||||||||||||||||
DBX15 | 15mm(5/8") | 10mm | - | Premium | - | 119 | ||||||||||||||||||||
DBX6v | 6mm(1/4") | 10mm | - | Premium | Vacuum Brazed | 96 |
|
|||||||||||||||||||
DBX8v | 8mm(5/16") | 10mm | - | Premium | Vacuum Brazed | 70 | ||||||||||||||||||||
DBX10v | 10mm(3/8") | 10mm | - | Premium | Vacuum Brazed | 73 | ||||||||||||||||||||
DBX12v | 12mm(1/2") | 10mm | - | Premium | Vacuum Brazed | 98 | ||||||||||||||||||||
DBX16v | 15mm(5/8") | 10mm | - | Premium | Vacuum Brazed | 113 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Marble | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Best coring for small holes (5mm~15mm), Vacuum brazed drills faster and effective on marble and deckton | |||||||||||||||||||||||||
Arbor: | 5/8"-11F | |||||||||||||||||||||||||
Max RPM: | 6500 | |||||||||||||||||||||||||
► Head Bit | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Arbor | |||||||||||||||||||||||||
ARB20e | 20mm | 20mm | M12 | #30/40 Coarse | - | 50 | ||||||||||||||||||||
ARB20e-L | 20mm | 20mm | M12 | #30/40 Coarse | Reverse Thread | 30 | ||||||||||||||||||||
ARB20-M8 | 20mm | 20mm | M8 | #30/40 Coarse | - | 31 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Marble | |||||||||||||||||||||||||
Machines: | CNC Machine | |||||||||||||||||||||||||
Features: | Suitable for sink cutout and round cutting on corner and edge. Soft diamond bond. | |||||||||||||||||||||||||
Arbor: | M8 or M12 | |||||||||||||||||||||||||
Max RPM: | 4500 | |||||||||||||||||||||||||
► CNC Finger Bit | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
FNG24 | 3/4" | 30 L | 3.8mm | Super Premium | - | 89 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Granite, Engineered stone | |||||||||||||||||||||||||
Machines: | CNC Machine | |||||||||||||||||||||||||
Features: | Suitable for sink cutout and round cutting on corner and edge. Soft diamond bond. | |||||||||||||||||||||||||
Arbor: | 1/2" Gas | |||||||||||||||||||||||||
Max RPM: | 4500~5500 | |||||||||||||||||||||||||
► CNC Finger Bit Vacuum Brazed NEW! | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
FNG15vc | 15mm | 50mm | - | Super Premium | - | 12 | ||||||||||||||||||||
FNG15vm | 15mm | 50mm | - | Super Premium | - | 27 | ||||||||||||||||||||
FNG25vc | 20mm | 50mm | - | Super Premium | - | 30 | ||||||||||||||||||||
FNG25vm | 20mm | 50mm | - | Super Premium | - | 32 | ||||||||||||||||||||
Use: | Wet | |||||||||||||||||||||||||
Application: | Engineered Stone, Porcelain/Tile, Marble | |||||||||||||||||||||||||
Machines: | CNC Machine | |||||||||||||||||||||||||
Features: | Suitable for sink cutout and round cutting on corner and edge. Water holes. | |||||||||||||||||||||||||
Arbor: | 1/2" Gas | |||||||||||||||||||||||||
Max RPM: | 4500~5500 | |||||||||||||||||||||||||
► T-Segment Core Bit | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DBT20v | 3/4"(20mm) | 7mm | 3mm | Premium | - | 172 | ||||||||||||||||||||
DBT22v | 7/8"(22mm) | 7mm | 3mm | Premium | - | 88 | ||||||||||||||||||||
DBT25v | 1"(25mm) | 7mm | 3mm | Premium | - | 177 | ||||||||||||||||||||
DBT28v | 1-1/8"(28mm) | 7mm | 3mm | Premium | - | 74 | ||||||||||||||||||||
DBT32v | 1-1/4"(32mm) | 7mm | 3mm | Premium | - | 184 | ||||||||||||||||||||
DBT35v | 1-3/8"(35mm) | 7mm | 3mm | Premium | - | 571 | ||||||||||||||||||||
DBT38v | 1-1/2"(38mm) | 7mm | 3mm | Premium | - | 210 | ||||||||||||||||||||
DBT41v | 1-5/8"(41mm) | 7mm | 3mm | Premium | - | 100 | ||||||||||||||||||||
DBT45v | 1-3/4"(45mm) | 7mm | 3mm | Premium | - | 110 | ||||||||||||||||||||
DBT48v | 1-7/8"(48mm) | 7mm | 3mm | Premium | - | 225 | ||||||||||||||||||||
DBT51v | 2"(51mm) | 7mm | 3.2mm | Premium | - | 61 | ||||||||||||||||||||
DBT57v | 2-1/4"(57mm) | 7mm | 3.2mm | Premium | - | 85 | ||||||||||||||||||||
DBT60v | 2-3/8"(60mm) | 7mm | 3.2mm | Premium | - | 57 | ||||||||||||||||||||
DBT64v | 2-1/2"(64mm) | 7mm | 3.2mm | Premium | - | 95 | ||||||||||||||||||||
DBT70v | 2-7/8"(70mm) | 7mm | 3.2mm | Premium | - | 39 | ||||||||||||||||||||
DBT76v | 3"(76mm) | 7mm | 3.2mm | Premium | - | 69 | ||||||||||||||||||||
DBT83v | 3-1/4"(83mm) | 7mm | 3.2mm | Premium | - | 67 | ||||||||||||||||||||
DBT85v | 3-3/8"(85mm) | 7mm | 3.2mm | Premium | - | 67 | ||||||||||||||||||||
DBT88v | 3-1/2"(88mm) | 7mm | 3.2mm | Premium | - | 21 | ||||||||||||||||||||
DBT101v | 4"(101mm) | 7mm | 3.2mm | Premium | - | 22 | ||||||||||||||||||||
DBT125v | 5"(125mm) | 7mm | 3.2mm | Premium | - | 42 | ||||||||||||||||||||
DBT150v | 6"(150mm) | 7mm | 3.2mm | Premium | - | 39 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Turbo segments for faster coring, less burning and debris removal. T-shape segment with side vacuum braze prevents tip falling. | |||||||||||||||||||||||||
Thin tip version is for faster and smoother coring, less aggressive. | ||||||||||||||||||||||||||
Arbor: | 5/8"-11 F | |||||||||||||||||||||||||
Max RPM: | 4800~6500 | |||||||||||||||||||||||||

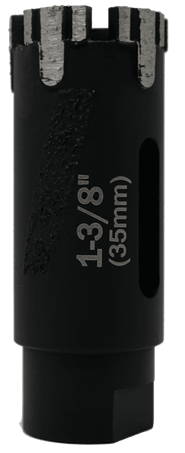

► T-Segment Core Bit (Thin Tip/Short Shank) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
dbt32t | 1-1/4"(32mm) | 10mm | 2.4mm | Premium | Thin Tip/ Short Shank |
40 | ||||||||||||||||||||
dbt35t | 1-3/8"(35mm) | 10mm | 2.4mm | Premium | 98 | |||||||||||||||||||||
dbt41t | 1-5/8"(41mm) | 10mm | 2.4mm | Premium | 90 | |||||||||||||||||||||
dbt45t | 1-3/4"(45mm) | 10mm | 2.4mm | Premium | 94 | |||||||||||||||||||||
dbt51t | 2"(51mm) | 10mm | 2.4mm | Premium | 21 | |||||||||||||||||||||
dbt64t | 2-1/2" (64mm) | 10mm | 2.4mm | Premium | 66 | |||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Turbo segments for faster coring, less burning and debris removal. | |||||||||||||||||||||||||
Thin tip version is for faster and smoother coring, less aggressive. | ||||||||||||||||||||||||||
Arbor: | 5/8"-11 F | |||||||||||||||||||||||||
Max RPM: | 4800~6500 | |||||||||||||||||||||||||

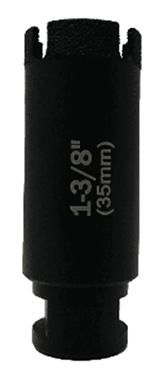

► Thin Wall Core Drill Bit | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DBA20 | 3/4"(20mm) | 8mm | 1.5mm | Premium | - | 33 | ||||||||||||||||||||
DBA25 | 1"(25mm) | 8mm | 1.5mm | Premium | - | 68 | ||||||||||||||||||||
DBA28 | 1-1/8"(28mm) | 8mm | 1.5mm | Premium | - | 34 | ||||||||||||||||||||
DBA32 | 1-1/4"(32mm) | 8mm | 1.5mm | Premium | - | 103 | ||||||||||||||||||||
DBA35 | 1-3/8"(35mm) | 8mm | 1.5mm | Premium | - | 150 | ||||||||||||||||||||
DBA38 | 1-1/2"(38mm) | 8mm | 1.5mm | Premium | - | 72 | ||||||||||||||||||||
DBA41 | 1-5/8"(41mm) | 8mm | 2.0mm | Premium | - | 48 | ||||||||||||||||||||
DBA45 | 1-3/4"(45mm) | 8mm | 2.0mm | Premium | - | 71 | ||||||||||||||||||||
DBA51 | 2"(51mm) | 8mm | 2.0mm | Premium | - | 74 | ||||||||||||||||||||
DBH20 | 3/4"(20mm) | 8mm | 1.5mm | Premium | CNC, 1/2" gas | 26 |
|
|||||||||||||||||||
DBH25 | 1"(25mm) | 8mm | 1.5mm | Premium | CNC, 1/2" gas | 18 | ||||||||||||||||||||
DBH32 | 1-1/4"(32mm) | 8mm | 1.5mm | Premium | CNC, 1/2" gas | 33 | ||||||||||||||||||||
DBH35 | 1-3/8"(35mm) | 8mm | 1.5mm | Premium | CNC, 1/2" gas | 0 | ||||||||||||||||||||
DBH38 | 1-1/2"(38mm) | 8mm | 1.5mm | Premium | CNC, 1/2" gas | 62 | ||||||||||||||||||||
DBH51 | 2"(51mm) | 8mm | 2.0mm | Premium | CNC, 1/2" gas | 19 | ||||||||||||||||||||
Use: | Wet only | |||||||||||||||||||||||||
Application: | Granite, Engineered stone, Porcelain/Tile, Ultra compact | |||||||||||||||||||||||||
Machines: | Angle Grinder and CNC machine | |||||||||||||||||||||||||
Features: | Long life time, clean cutting for thin wall materials. Suitable for straight coring. | |||||||||||||||||||||||||
Arbor: | 5/8"-11 F and 1/2" Gas | |||||||||||||||||||||||||
Max RPM: | 1250 | |||||||||||||||||||||||||
► Vacuum Core Bit | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DBE20 | 3/4"(20mm) | Premium | 62 | |||||||||||||||||||||||
DBE25 | 1"(25mm) | Premium | 74 | |||||||||||||||||||||||
DBE32 | 1-1/4"(32mm) | Premium | 81 | |||||||||||||||||||||||
DBE35 | 1-3/8"(35mm) | Premium | 270 | |||||||||||||||||||||||
DBE38 | 1-1/2"(38mm) | Premium | 88 | |||||||||||||||||||||||
DBE41 | 1-5/8"(41mm) | Premium | 30 | |||||||||||||||||||||||
DBE45 | 1-3/4"(45mm) | Premium | 34 | |||||||||||||||||||||||
DBE51 | 2"(51mm) | Premium | 72 | |||||||||||||||||||||||
DBE57 | 2-1/4"(57mm) | Premium | 97 | |||||||||||||||||||||||
DBE60 | 2-3/8"(60mm) | Premium | 21 | |||||||||||||||||||||||
DBE64 | 2-1/2"(64mm) | Premium | 37 | |||||||||||||||||||||||
DBE70 | 2-7/8"(70mm) | Premium | 18 | |||||||||||||||||||||||
DBE76 | 3"(76mm) | Premium | 44 | |||||||||||||||||||||||
DBE83 | 3-1/4"(83mm) | Premium | 19 | |||||||||||||||||||||||
DBE88 | 3-1/2"(88mm) | Premium | 15 | |||||||||||||||||||||||
DBE101 | 4"(101mm) | Premium | 11 | |||||||||||||||||||||||
SALE! | DBE35t | 1-3/8"(35mm) | Premium | Thin Tip | 48 | |||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Engineered Stone, Porcelain/Tile, Marble | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Best coring performance for marble and soft materials like porcelain and deckton. | |||||||||||||||||||||||||
Arbor: | 5/8"-11 F | |||||||||||||||||||||||||
Max RPM: | 4000 | |||||||||||||||||||||||||
- Shaping - | ||||||||||||||||||||||||||
Use: | Wet Only | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone | |||||||||||||||||||||||||
Machines: | All our profilers should be used with Router Ednge Machines. | |||||||||||||||||||||||||
Rim Type: | Clean and smooth shaping performance. | |||||||||||||||||||||||||
Slot Type: | The slot lines show how much a profiler has been used. Longer lifespan, More balanced and faster shaping. Effective debris removal. | |||||||||||||||||||||||||
Vacuum Type: | Best for marble, quartz, deckton, and any soft materials. Fastest shaping speed. Even wearing. | |||||||||||||||||||||||||
► Profiler, Eased (A) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
A-15r1 | A15 | - | 3mm | P1(#30/40) | Rim Type | 28 | ||||||||||||||||||||
A-20r1 | A20 | - | 3mm | P1(#30/40) | Rim Type | 15 | ||||||||||||||||||||
A-30r1 | A30 | - | 3mm | P1(#30/40) | Rim Type | 14 | ||||||||||||||||||||
A-40r1 | A40 | - | 3mm | P1(#30/40) | Rim Type | 10 | ||||||||||||||||||||
SALE! | A-15e1 | A15 | - | - | P1(#30/40) | Vacuum Brazed | 28 | |||||||||||||||||||
SALE! | A-20e1 | A20 | - | - | P1(#30/40) | Vacuum Brazed | 5 |
|
||||||||||||||||||
SALE! | A-20e2 | A20 | - | - | P2(#60/80) | Vacuum Brazed | 2 | |||||||||||||||||||
► Profiler, Demi (B) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
B-10r1 | B10 | - | 3mm | P1(#30/40) | Rim Type | 64 | ||||||||||||||||||||
B-15r1 | B15 | - | 3mm | P1(#30/40) | Rim Type | 57 | ||||||||||||||||||||
B-20r1 | B20 | - | 3mm | P1(#30/40) | Rim Type | 51 | ||||||||||||||||||||
B-20r2 | B20 | - | 3mm | P2(#60/80) | Rim Type | 10 | ||||||||||||||||||||
B-25r1 | B25 | - | 3mm | P1(#30/40) | Rim Type | 51 | ||||||||||||||||||||
B-25r2 | B25 | - | 3mm | P2(#60/80) | Rim Type | 6 |
|
|||||||||||||||||||
B-30r1 | B30 | - | 3mm | P1(#30/40) | Rim Type | 18 | ||||||||||||||||||||
SALE! | B-20-1 | B20 | - | 3mm | P1(#30/40) | Slot Type | 16 | |||||||||||||||||||
SALE! | B-20-2 | B20 | - | 3mm | P2(#60/80) | Slot Type | 3 | |||||||||||||||||||
SALE! | B-25-1 | B25 | - | 3mm | P1(#30/40) | Slot Type | 22 | |||||||||||||||||||
SALE! | B-30-1 | B30 | - | 3mm | P1(#30/40) | Slot Type | 14 | |||||||||||||||||||
SALE! | B-10e1 | B10 | - | - | P1(#30/40) | Vacuum Brazed | 20 | |||||||||||||||||||
SALE! | B-15e1 | B15 | - | - | P1(#30/40) | Vacuum Brazed | 5 |
|
||||||||||||||||||
SALE! | B-15e2 | B15 | - | - | P2(#60/80) | Vacuum Brazed | 2 | |||||||||||||||||||
SALE! | B-20e1 | B20 | - | - | P1(#30/40) | Vacuum Brazed | 14 | |||||||||||||||||||
SALE! | B-20e2 | B20 | - | - | P2(#60/80) | Vacuum Brazed | 5 | |||||||||||||||||||
► Profiler, Bevel (E) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
E-15r1 | E15 | - | 3mm | P1(#30/40) | Rim Type | 45 | ||||||||||||||||||||
E-20r1 | E20 | - | 3mm | P1(#30/40) | Rim Type | 39 | ||||||||||||||||||||
E-30r1 | E30 | - | 3mm | P1(#30/40) | Rim Type | 26 | ||||||||||||||||||||
SALE! | E-15e1 | E15 | - | - | P1(#30/40) | Vacuum Brazed | 5 | |||||||||||||||||||
SALE! | E-20e1 | E20 | - | - | P1(#30/40) | Vacuum Brazed | 18 | |||||||||||||||||||
SALE! | E-30e1 | E30 | - | - | P1(#30/40) | Vacuum Brazed | 8 |
|
||||||||||||||||||
► Profiler, Ogee (F) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
F-20r1 | F20 | - | 3mm | P1(#30/40) | Rim Type | 46 | ||||||||||||||||||||
F-25r1 | F25 | - | 3mm | P1(#30/40) | Rim Type | 15 | ||||||||||||||||||||
F-25r2 | F25 | - | 3mm | P2(#60/80) | Rim Type | 1 | ||||||||||||||||||||
F-30r1 | F30 | - | 3mm | P1(#30/40) | Rim Type | 28 | ||||||||||||||||||||
F-30r2 | F30 | - | 3mm | P2(#60/80) | Rim Type | 1 | ||||||||||||||||||||
F-20sg | F20 | - | 3mm | P0 (Breaker) | Segmented | 7 | ||||||||||||||||||||
SALE! | F-25-1-S | F25 | 80mm | 3mm | P1(#30/40) | Slot Type | 24 |
|
||||||||||||||||||
SALE! | F-30-1 | F30 | - | 3mm | P1(#30/40) | Slot Type | 18 | |||||||||||||||||||
SALE! | F-30-2 | F30 | - | 3mm | P2(#60/80) | Slot Type | 7 | |||||||||||||||||||
SALE! | F-20RS1 | F20 | - | 3mm | P1(#30/40) | Resin Type | 1 | |||||||||||||||||||
SALE! | F-20e1 | F20 | - | - | P1(#30/40) | Vacuum Brazed | 18 | |||||||||||||||||||
SALE! | F-20e2 | F20 | - | - | P2(#60/80) | Vacuum Brazed | 16 | |||||||||||||||||||
► Profiler, Ogee + Demi (FB) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
FB-30r1 | FB30 | - | 3mm | P1(#30/40) | Rim Type | 19 | ||||||||||||||||||||
FB-40r1 | FB40 | - | 3mm | P1(#30/40) | Rim Type | 14 | ||||||||||||||||||||
SALE! | FB-30-1 | FB30 | - | 3mm | P1(#30/40) | Slot Type | 14 | |||||||||||||||||||
SALE! | FB-40-1 | FB40 | - | 3mm | P1(#30/40) | Slot Type | 2 | |||||||||||||||||||
► Profiler, Dupont (H) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
H-20r1 | H20 | - | 3mm | P1(#30/40) | Rim Type | 33 | ||||||||||||||||||||
H-25r1 | H25 | - | 3mm | P1(#30/40) | Rim Type | 32 | ||||||||||||||||||||
H-30r1 | H30 | - | 3mm | P1(#30/40) | Rim Type | 34 | ||||||||||||||||||||
SALE! | H-20-1 | H20 | - | 3mm | P1(#30/40) | Slot Type | 22 | |||||||||||||||||||
SALE! | H-30-1 | H30 | - | 3mm | P1(#30/40) | Slot Type | 24 | |||||||||||||||||||
H-20r1-d | H20 | Diasaw Logo | 3mm | P1(#30/40) | Rim Type | 12 | ||||||||||||||||||||
H-25r1-d | H25 | Diasaw Logo | 3mm | P1(#30/40) | Rim Type | 20 | ||||||||||||||||||||
H-30r1-d | H30 | Diasaw Logo | 3mm | P1(#30/40) | Rim Type | 15 | ||||||||||||||||||||
► Profiler, Cove (L) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
L-20r1 | L20 | - | 3mm | P1(#30/40) | Rim Type | 0 | ||||||||||||||||||||
L-30r1 | L30 | - | 3mm | P1(#30/40) | Rim Type | 2 | ||||||||||||||||||||
► Profiler, Cove + Dupont (O) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
O-20r1 | O20 | - | 3mm | P1(#30/40) | Rim Type | 21 | ||||||||||||||||||||
O-25r1 | O25 | - | 3mm | P1(#30/40) | Rim Type | 10 | ||||||||||||||||||||
O-30r1 | O30 | - | 3mm | P1(#30/40) | Rim Type | 34 | ||||||||||||||||||||
SALE! | O-20-1 | O20 | - | 3mm | P1(#30/40) | Slot Type | 15 | |||||||||||||||||||
SALE! | O-30-1 | O30 | - | 3mm | P1(#30/40) | Slot Type | 4 | |||||||||||||||||||
► Profiler, Pencil / Eye Brow (PN) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
PN-30r1 | PN30 | - | 3mm | P1(#30/40) | Rim Type | 15 | ||||||||||||||||||||
► Profiler, Cove + Ogee (Q) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
Q-20r1 | Q20 | - | 3mm | P1(#30/40) | Rim Type | 23 | ||||||||||||||||||||
Q-25r1 | Q25 | - | 3mm | P1(#30/40) | Rim Type | 24 | ||||||||||||||||||||
Q-30r1 | Q30 | - | 3mm | P1(#30/40) | Rim Type | 17 | ||||||||||||||||||||
SALE! | Q-20-1 | Q20 | - | 3mm | P1(#30/40) | Slot Type | 24 | |||||||||||||||||||
SALE! | Q-25-1 | Q25 | - | 3mm | P1(#30/40) | Slot Type | 6 | |||||||||||||||||||
SALE! | Q-30-1 | Q30 | - | 3mm | P1(#30/40) | Slot Type | 19 | |||||||||||||||||||
► Profiler, French Versay (RGA) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
RGA-20-1 | R/GA20 | - | 3mm | P1(#30/40) | Slot Type | 9 | ||||||||||||||||||||
RGA-30-1 | R/GA30 | - | 3mm | P1(#30/40) | Slot Type | 13 | ||||||||||||||||||||
► Profiler, Double Eased (T) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
T-30r1 | T30 | - | 3mm | P1(#30/40) | Rim Type | 15 | ||||||||||||||||||||
► Profiler, Full Bullnose (V) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
V-20r1 | V20 | - | 3mm | P1(#30/40) | Rim Type | 55 | ||||||||||||||||||||
V-30r1 | V30 | - | 3mm | P1(#30/40) | Rim Type | 30 | ||||||||||||||||||||
V-40r1 | V40 | - | 3mm | P1(#30/40) | Rim Type | 27 | ||||||||||||||||||||
V-50r1 | V50 | - | 3mm | P1(#30/40) | Rim Type | 7 | ||||||||||||||||||||
V-60r1 | V60 | - | 3mm | P1(#30/40) | Rim Type | 7 | ||||||||||||||||||||
SALE! | V-20-1 | V20 | - | 3mm | P1(#30/40) | Slot Type | 15 | |||||||||||||||||||
SALE! | V-40-1 | V40 | - | 3mm | P1(#30/40) | Slot Type | 16 | |||||||||||||||||||
► Profiler, Waterfall (B + B) (WF) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
WF-20r1 | WF20 | - | 3mm | P1(#30/40) | Rim Type | 26 | ||||||||||||||||||||
WF-30r1 | WF30 | - | 3mm | P1(#30/40) | Rim Type | 17 | ||||||||||||||||||||
SALE! | WF-20-1 | WF20 | - | 3mm | P1(#30/40) | Slot Type | 14 | |||||||||||||||||||
WF-20r1-d | WF20 | Diasaw Logo | 3mm | P1(#30/40) | Rim Type | 9 | ||||||||||||||||||||
|
||||||||||||||||||||||||||
► Profiler (DD) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DD-23r1 | DD23 | - | 3mm | P1(#30/40) | Rim Type | 5 | ||||||||||||||||||||
- Polishing - | ||||||||||||||||||||||||||
► Metal Polishing Pad (Rubber Body) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
MP4-30 | 4" | - | 3.0mm | #30 | Dot Type | 160 | ||||||||||||||||||||
MP4-60 | 4" | - | 3.0mm | #60 | Dot Type | 171 | ||||||||||||||||||||
MP4-120 | 4" | - | 3.0mm | #120 | Dot Type | 221 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Suitable for pre-cutting and polishing aggressive surface. Long life time. Stable and flexible polishing. | |||||||||||||||||||||||||
Less noise by absorbing the vibration. | ||||||||||||||||||||||||||
Arbor: | 5/8"-11 F | |||||||||||||||||||||||||
Max RPM: | 4000 | |||||||||||||||||||||||||
► Light Cup Wheel NEW! | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
LC4 | 4" | - | 3.0mm | #50 | Dot Type | 17 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Suitable for pre-cutting and polishing aggressive surface. Long life time. Stable and flexible polishing. | |||||||||||||||||||||||||
Less noise by absorbing the vibration. | ||||||||||||||||||||||||||
Arbor: | 5/8"-11 F | |||||||||||||||||||||||||
Max RPM: | 4000 | |||||||||||||||||||||||||
► Flexible Metal Polishing Pad (Velcro Body) NEW! | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
MPP4-50 | 4" | - | - | #50 | Dot Type | 8 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered stone | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Easy to change between pads. Long life time and smooth polishing. | |||||||||||||||||||||||||
Light weight for pre-cutting aggressive surface. | ||||||||||||||||||||||||||
Arbor: | Velcro Back | |||||||||||||||||||||||||
Max RPM: | 4000 | |||||||||||||||||||||||||
► Dry Polishing Pad (not glossy) | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DP3-100 | 3" | - | - | #100 | - | 48 | ||||||||||||||||||||
DP3-200 | 3" | - | - | #200 | - | 50 | ||||||||||||||||||||
DP-30 | 4" | - | - | #30 | - | 470 | ||||||||||||||||||||
DP-50 | 4" | - | - | #50 | - | 271 | ||||||||||||||||||||
DP-100 | 4" | - | - | #100 | - | 587 | ||||||||||||||||||||
DP-200 | 4" | - | - | #200 | - | 502 | ||||||||||||||||||||
DP-400 | 4" | - | - | #400 | - | 403 | ||||||||||||||||||||
DP-800 | 4" | - | - | #800 | - | 411 | ||||||||||||||||||||
DP-1500 | 4" | - | - | #1500 | - | 370 |
|
|||||||||||||||||||
DP-3000 | 4" | - | - | #3000 | - | 503 | ||||||||||||||||||||
DP-B | 4" | - | - | Buff (Black) | - | 128 | ||||||||||||||||||||
DP-W | 4" | - | - | Buff (White) | - | 129 | ||||||||||||||||||||
Use: | Dry | |||||||||||||||||||||||||
Application: | Granite, Polcelain/Tile, Marble | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Premium quality of dry polishing system available 3~4" and grits from 30~3000 and Buff. | |||||||||||||||||||||||||
Arbor: | Velcro Back | |||||||||||||||||||||||||
Max RPM: | 4000 | |||||||||||||||||||||||||
► 3-Step Dry Polishing Pad NEW! | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
DP3-1 | 4" | - | - | #1 | - | 125 | ||||||||||||||||||||
DP3-2 | 4" | - | - | #2 | - | 136 | ||||||||||||||||||||
DP3-3 | 4" | - | - | #3 | - | 89 | ||||||||||||||||||||
Use: | Dry Only | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Marble, Polcelain/Tile | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Premium quality of 3-Step dry polishing system for faster polishing time. | |||||||||||||||||||||||||
Arbor: | Velcro Back | |||||||||||||||||||||||||
Max RPM: | 4000 | |||||||||||||||||||||||||
► Wet Polishing Pad | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
WP3-30 | 3" | - | - | #30 | - | 109 | ||||||||||||||||||||
WP3-50 | 3" | - | - | #50 | - | 196 | ||||||||||||||||||||
WP3-100 | 3" | - | - | #100 | - | 121 | ||||||||||||||||||||
WP3-200 | 3" | - | - | #200 | - | 50 | ||||||||||||||||||||
WP3-400 | 3" | - | - | #400 | - | 99 | ||||||||||||||||||||
WP3-800 | 3" | - | - | #800 | - | 46 | ||||||||||||||||||||
WP3-1500 | 3" | - | - | #1500 | - | 76 | ||||||||||||||||||||
WP3-3000 | 3" | - | - | #3000 | - | 116 | ||||||||||||||||||||
WP3-B | 3" | - | - | Buff (Black) | - | 60 | ||||||||||||||||||||
WP3-W | 3" | - | - | Buff (White) | - | 60 |
|
|||||||||||||||||||
WP-30 | 4" | - | - | #30 | - | 266 | ||||||||||||||||||||
WP-50 | 4" | - | - | #50 | - | 275 | ||||||||||||||||||||
WP-100 | 4" | - | - | #100 | - | 447 | ||||||||||||||||||||
WP-200 | 4" | - | - | #200 | - | 350 | ||||||||||||||||||||
WP-400 | 4" | - | - | #400 | - | 381 | ||||||||||||||||||||
WP-800 | 4" | - | - | #800 | - | 278 | ||||||||||||||||||||
WP-1500 | 4" | - | - | #1500 | - | 310 | ||||||||||||||||||||
WP-3000 | 4" | - | - | #3000 | - | 393 | ||||||||||||||||||||
WP-B | 4" | - | - | Buff (Black) | - | 100 | ||||||||||||||||||||
WP-W | 4" | - | - | Buff (White) | - | 119 | ||||||||||||||||||||
Use: | Wet Only | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Marble, Polcelain/Tile | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Premium quality of wet polishing system available 3~4" and grits from 30~3000 and Buff. | |||||||||||||||||||||||||
Arbor: | Velcro Back | |||||||||||||||||||||||||
Max RPM: | 4000 | |||||||||||||||||||||||||
► 3-Step Wet Polishing Pad | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
3PP-1 | 4" | - | 3.0mm | #1 | - | 191 | ||||||||||||||||||||
3PP-2 | 4" | - | 3.0mm | #2 | - | 158 | ||||||||||||||||||||
3PP-3 | 4" | - | 3.0mm | #3 | - | 179 | ||||||||||||||||||||
Use: | Wet Only |
|
||||||||||||||||||||||||
Application: | Granite, Engineered Stone, Marble, Polcelain/Tile | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Premium quality of 3-Step wet polishing system for faster polishing time. | |||||||||||||||||||||||||
Arbor: | Velcro Back | |||||||||||||||||||||||||
Max RPM: | 4000 | |||||||||||||||||||||||||
► Hybrid Polishing Pad (Wet + Dry)NEW! | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
HP3-1 | 4" | - | - | #1 | 3-Step | 584 | ||||||||||||||||||||
HP3-2 | 4" | - | - | #2 | 3-Step | 323 | ||||||||||||||||||||
HP3-3 | 4" | - | - | #3 | 3-Step | 436 | ||||||||||||||||||||
HP5-1 | 4" | - | - | #1 | 5-Step | 143 | ||||||||||||||||||||
HP5-2 | 4" | - | - | #2 | 5-Step | 159 | ||||||||||||||||||||
HP5-3 | 4" | - | - | #3 | 5-Step | 173 | ||||||||||||||||||||
HP5-4 | 4" | - | - | #4 | 5-Step | 153 |
|
|||||||||||||||||||
HP5-5 | 4" | - | - | #5 | 5-Step | 186 | ||||||||||||||||||||
HP7-50 | 4" | - | - | #50 | 7-Step | 291 | ||||||||||||||||||||
HP7-100 | 4" | - | - | #100 | 7-Step | 225 | ||||||||||||||||||||
HP7-200 | 4" | - | - | #200 | 7-Step | 251 | ||||||||||||||||||||
HP7-400 | 4" | - | - | #400 | 7-Step | 81 | ||||||||||||||||||||
HP7-800 | 4" | - | - | #800 | 7-Step | 21 |
|
|||||||||||||||||||
HP7-1500 | 4" | - | - | #1500 | 7-Step | 96 | ||||||||||||||||||||
HP7-3000 | 4" | - | - | #3000 | 7-Step | 157 | ||||||||||||||||||||
Use: | Wet and Dry | |||||||||||||||||||||||||
Application: | Granite, Engineered Stone (Wet), Marble, Polcelain/Tile | |||||||||||||||||||||||||
Machines: | Angle Grinder | |||||||||||||||||||||||||
Features: | Premium quality of 3,5,7-Step wet polishing system. Light color resin for white surface. | |||||||||||||||||||||||||
Arbor: | Velcro Back | |||||||||||||||||||||||||
Max RPM: | 4000 | |||||||||||||||||||||||||
► Engineered Polishing Pad (Wet)NEW! | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
EP3-1 | 4" | - | - | #1 | 3-Step | 276 | ||||||||||||||||||||
EP3-2 | 4" | - | - | #2 | 3-Step | 447 | ||||||||||||||||||||
EP3-3 | 4" | - | - | #3 | 3-Step | 310 | ||||||||||||||||||||
Use: | Wet Only | |||||||||||||||||||||||||
Application: | Engineered Stone | |||||||||||||||||||||||||
Machines: | Angle Grinder |
|
||||||||||||||||||||||||
Features: | Specifically desgined for the best performance on engineered stone. Light color resin for white surface. | |||||||||||||||||||||||||
Arbor: | Velcro Back | |||||||||||||||||||||||||
Max RPM: | 4000 | |||||||||||||||||||||||||
► Polhand Hand Polishing Pads with grip | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
PLH-50 | 55x100 | - | - | #50 | - | 61 | ||||||||||||||||||||
PLH-100 | 55x100 | - | - | #100 | - | 57 | ||||||||||||||||||||
PLH-200 | 55x100 | - | - | #200 | - | 62 | ||||||||||||||||||||
PLH-400 | 55x100 | - | - | #400 | - | 62 | ||||||||||||||||||||
PLH-800 | 55x100 | - | - | #800 | - | 59 | ||||||||||||||||||||
PLH-1500 | 55x100 | - | - | #1500 | - | 62 | ||||||||||||||||||||
PLH-3000 | 55x100 | - | - | #3000 | - | 56 | ||||||||||||||||||||
Application: | Quick and convenient polishing pads with hand grip. Electroplated diamonds for smooth and faster polishing. No machine is needed. | |||||||||||||||||||||||||
► Backer Pads | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
BKP4a | 4" | - | - | Rigid | Aluminum | 42 | ||||||||||||||||||||
BKP4p | 4" | - | - | Rigid | Plastic | 566 | ||||||||||||||||||||
BKP4s | 4" | Premium | Green Color | Flexible | Rubber | 730 | ||||||||||||||||||||
BKP4pc | 4" | - | - | Rigid/Flexible | Plastic/Cushion | 75 | ||||||||||||||||||||
BKP3s | 3" | - | - | Flexible | Rubber | 218 | ||||||||||||||||||||
BKP5a | 5" | - | - | Rigid | Aluminum | 134 | ||||||||||||||||||||
|
|
|
||||||||||||||||||||||||
► Core Bit Adapter - 5/8"-11 to 1/2" shank for Electric Drill NEW! | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
CBA1 | - | - | - | - | - | 190 | ||||||||||||||||||||
► Brass Flange | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
BF5 | - | - | - | - | - | 575 | ||||||||||||||||||||
Application: | 4 hole adapter for balde with 5/8"-11 F thread | |||||||||||||||||||||||||
► Brass Arbor Ring for Silent blade | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
BR1 | 60-50 mm | - | - | - | - | 52 | ||||||||||||||||||||
► Profiler Bearing | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
BRG5 | 35x10mm | 1 | ||||||||||||||||||||||||
BRG31 | 40x10mm | - | - | - | - | 22 | ||||||||||||||||||||
► Bolts for Profilers | ||||||||||||||||||||||||||
Item Code | Diameter | Tip | Grit Grade |
Option | Quantity |
|
||||||||||||||||||||
Width | Thick | |||||||||||||||||||||||||
BT | all size | - | - | - | - | 67 | ||||||||||||||||||||
Thank you for your business! | ||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||
